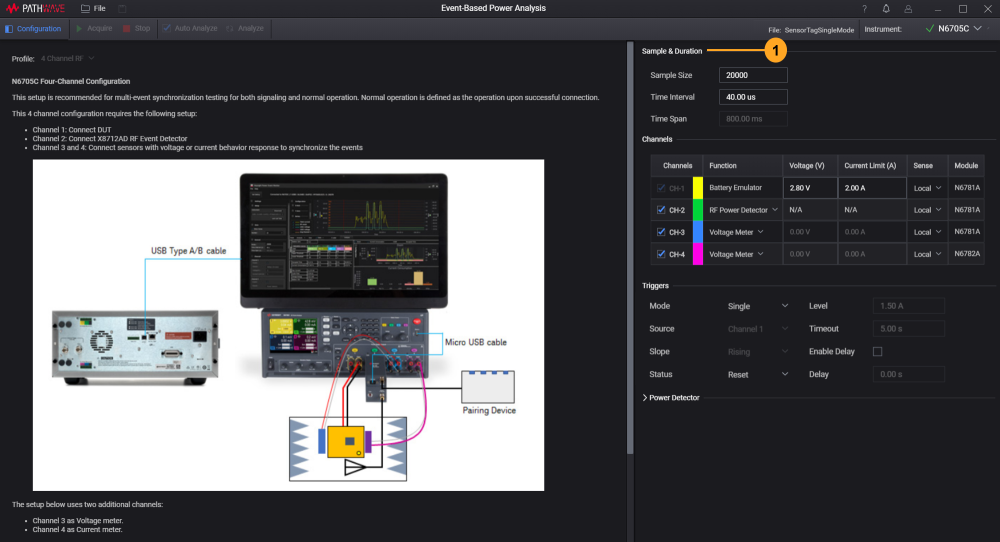

Sample and Duration
This settings configures the parameters associated with data acquisition.
Sample Size
Define the number of points in a measurement where the minimum point is 100. The range is dependent on the number of channels below where K equals 1024.
- One channel: up to 512K points.
- Two channels: up to 256K points.
- Three channels: up to 128K points.
- Four channels: up to 64K points
Time Interval
Define the time period between samples, where the maximum is 0.1 seconds. The minimum time interval is dependent on the number of channels below:
- One channel only: 5.12 microseconds.
- One or two channels: 10.24 microseconds
- Three or four channels: 20.48 microseconds
Time Span
The product of the Sample Size and Time Interval.
Next
According to your test case and requirements, configure the following settings:
